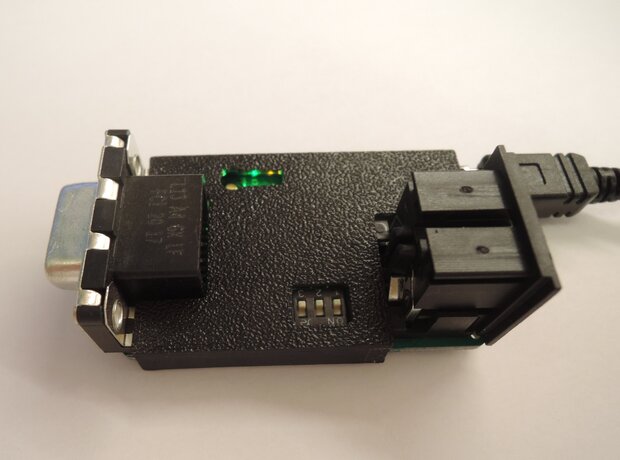

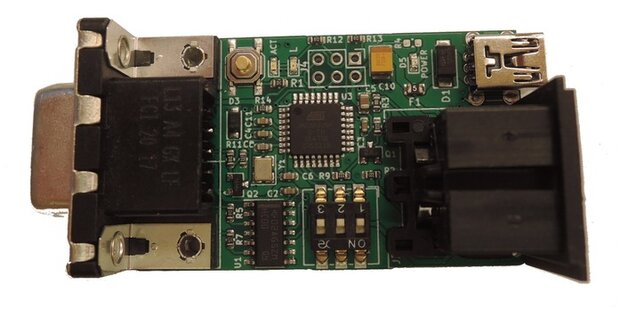

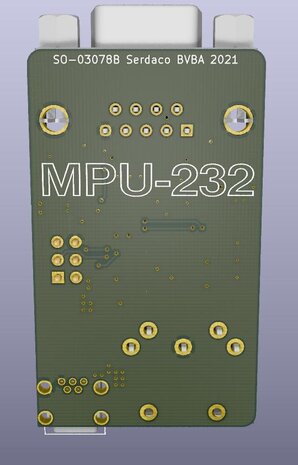

MPU-232 MPU-232 render MPU-232 Cover
MPU-232 MPU-232 render MPU-232 Cover
MPU-232
RS232 to MIDI interface, compatible with SOFTMPU
€ 30,00
Price per unit

Stock :

Quantity:
Order

Completely soldered, programmed and tested boards.

MPU-232 : RS232 to MIDI interface, compatible with SOFTMPU
  • small size, high quality PCB
  • fits on 9 pin serial port
  • MIDI output DIN connector
  • 5V supply through USB mini connector
  • DIP switches for advanced settings

DIP positions :
DIP 3 :  OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection
Baud Rate table DIP 1 = OFF DIP 1 = ON
DIP 2 = OFF 38400 9600
DIP 2 = ON 19200 4800

Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1

MPU-232 demo by Retro Erik :


Sam and Max Demo using SOFTMPU :

Reams of Chaos demo using SOFTMPU :

Demo by Retro Erik on XT :
