MP32L : MT32-Pi compatible MIDI module

MT32L is a MT32 / Soundfont compatible synthesizer module, based on raspberry pi The MT32L PCB is a hat for raspberry pi that is compatible with MT32-Pi

€ 47,00

Price per unit

Stock :

MP32L Ready to Run options:

MP32L Enclosure Option:

DOS PC MIDI interface:

Description

If this is out of stock, have a look at TM32 instead, as an alternative.
TM32 is the newer version of MP32L.

MP32L : MT32 / Soundfont compatible synthesizer module, based on raspberry pi
MP32L can play SF2 soundfonts and emulate MT32 (when providing the ROM files).
Compatible with MT32-Pi config files : see more information here : Example MP32L config here.
Find more information on MT32 synthesis configuration here.

Features of MP32L :

high quality DAC
3.5mm stereo line out
Properly Opto-Isolated MIDI DIN input
OLED display : black background, white pixels
Power supply input : IMPORTANT
- PI3A : USB Micro connector, 5.1 V, min 2.5A --> recommended to use official raspberry pi power supply
- PI4B : USB C connector, 5.1 V, min 2.5A --> recommended to use official raspberry pi power supply
- Average power consumption is 500mA, but peaks up to 2A should be supported by the adapter
Control Buttons for easy operation
Optional 3d print enclosure, easy to put together

MP32L Ready To Run options :

DIY option :

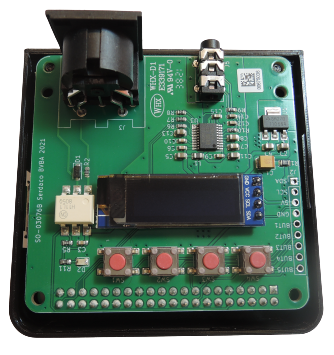

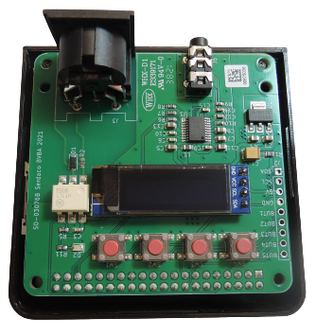

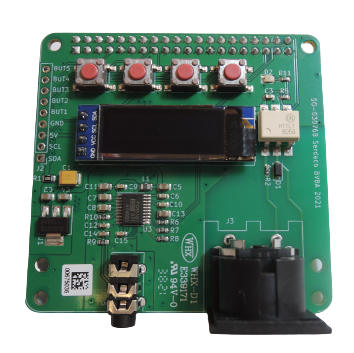

- Assembled high quality MP32L Pi Hat PCB with button controls and OLED screen
- You need to add your own raspberry pi, micro sd card, ..
- Intended for tinkerers

Ready to run option PI 3A+ :
- Complete tested setup, including
  - MP32L PCB

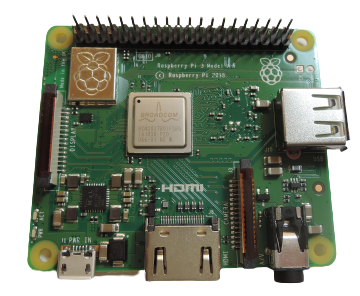

  - PI 3A+
  - preinstalled 16GB micro SD card (configured for General User SF2 playback)
- Only steps needed are : put the 2 boards on eachother, and (optionally) put it in the 3d print enclosure.
- Recommended option for getting started without trouble

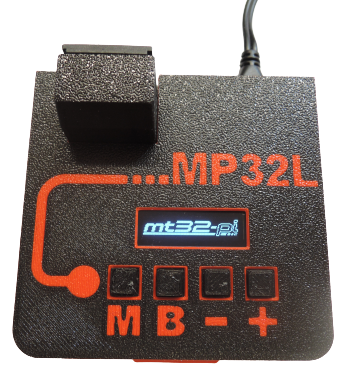

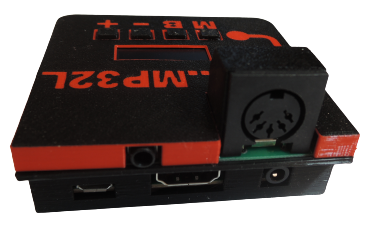

Enclosure for Pi 3A+

high quality enclosure that fits on Pi 3A+
available in black/red and black/blue colour scheme
easy to assemble / disassemble
STL files available here , if you wish to print this yourself, or modify the design

Enclosure for Pi 4B/3B

high quality enclosure that fits on Pi 4B/3B
available in black/red and black/blue colour scheme
easy to assemble / disassemble
STL files available here , if you wish to print this yourself, or modify the design

DOS PC connectivity options :

1M Quality MIDI Cable
DB15MIDI interface to connect to your soundcards Joystick/MIDI port

MP32L Controls :

MP32L demo : Space Quest III (MT32 emulation)

MP32L demo : Zeliard (MT32 emulation)

MP32L demo : Doom E1M1 (general midi - General user soundfont)

MP32L demo + tutorial by Retro Erik

Overview of MP32L and other sound cards by Retro Erik :
