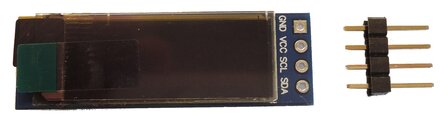

0.91" OLED display
OLED Display 0.91″
Small form factor 128 x 32 white OLED display with I2C interface. Available with blue or white pixels.
€ 5,00
Price per unit

Stock :

Quantity:
Order

  • High quality OLED 0.91″ 128×32 I2C Display
  • White pixels
  • Black background
  • I2C address 0x3C
  • Compatible with MT32PI, McCake, MP32L, ... projects

Packet includes :
  • PCB OLED 0.91″ 128×32 I2C Display
  • 4 pin header
Pinout : 1x 4 header :
  • GND – Connect to system ground.  This ground needs to be in common with the MCU.
  • VCC –   Connect to 3.3 or 5V.  This can come from the MCU or be a separate power supply.
  • SCL –    Connect to the I2C / SCL pin on the MCU.
  • SDA –   Connect to the I2C / SDA pin on the MCU
