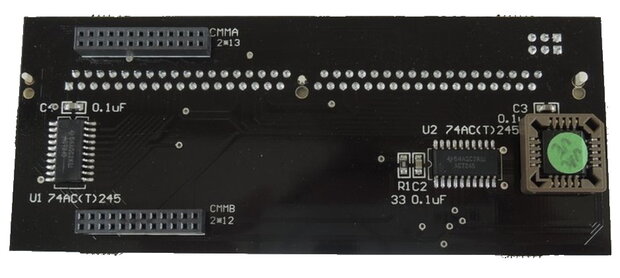

SIMMCONN Revival AWE 64 Memory Expansion Card
New 2020 Batch available now !
Remake by permission, of the classic simmconn card project :
http://simmconn.tripod.com/

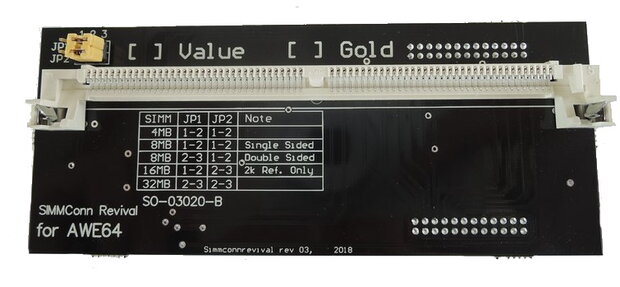

Select the suitable PAL chip option :
Gold chip for AWE64 Gold compatibility
Value chip for AWE64 Value compatibility
Select Gold + Value if you own both kinds of AWE cards. As the PAL chip is socketed, you can swap out the chip when needed.
Known working 32mbyte memory modules :
- HYUNDAI HY5117400C J-60
- LGS GM71c17400AJ6
- SIEMENS HYB5117405BJ-60
- OKI M5117405A-60SJ
- MIT 417409DJ EDO-60
- M.tec TBE1604A2A60
You can read vogons forum thread on this project :
https://www.vogons.org/viewtopic.php?f=62&t=43733
Also here's a demo of the memory module :
