USB MIDI Host module :
Create a real MIDI OUT port for your pure USB MIDI controllers and keyboards, without a PC.

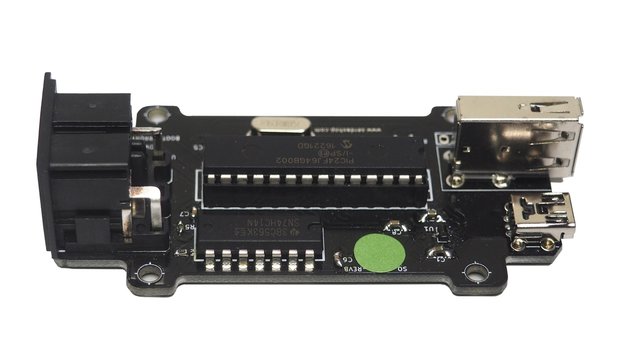

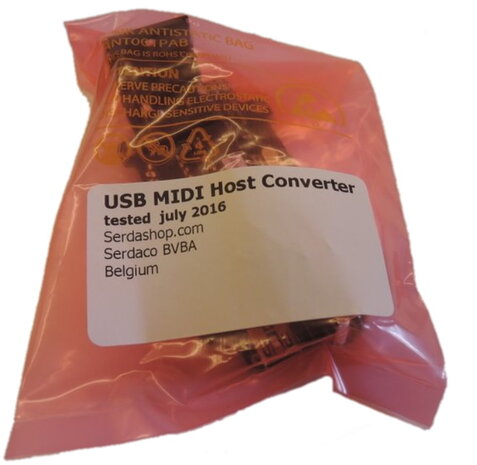

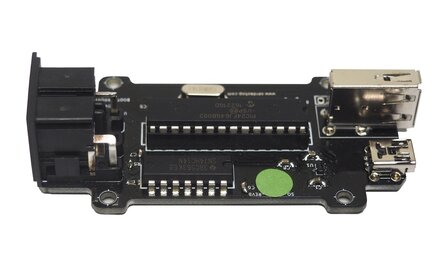

Available as separate PCB and as Module (PCB + Enclosure)

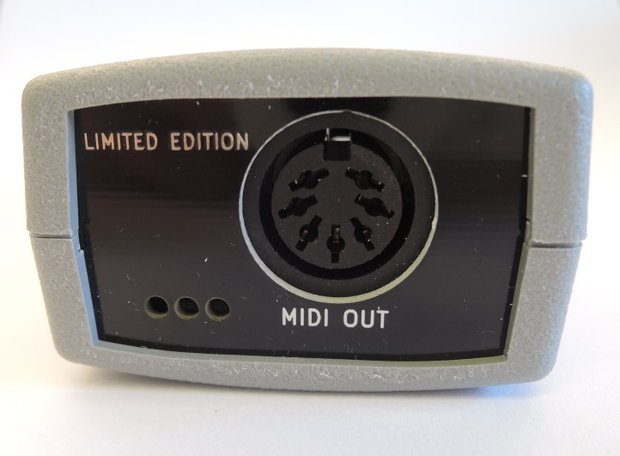

- 'Classic' DIN MIDI Out port

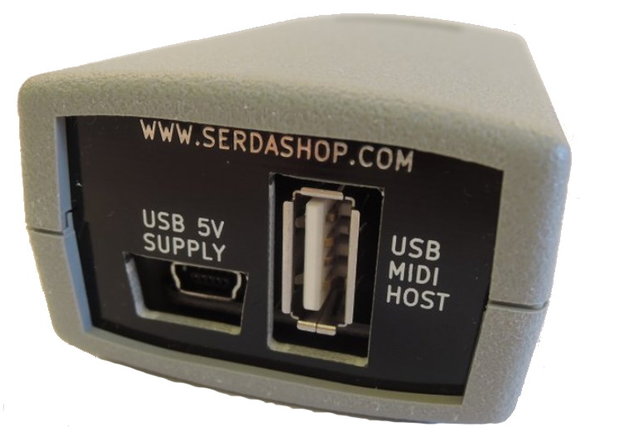

- USB Host port, provides power to your USB MIDI device and receives MIDI information
- Mini USB port (for 5V power supply)
Example setup with Akai LPD8 :
Compatibility
Standard MIDI compliant devices are supported.Some Complex MIDI devices use a built-in USB Hub. These MIDI devices are not supported and
will NOT work with our USB HOST Module. You can determine if your device has a built-in hub by running the free Windows program
USB Tree Viewer. If, when you plug in your MIDI device, it appears as a new hub plus one or more devices then it will not work with our USB Host Module.
USB MIDI Host Compatibility List
| Known Supported Devices |
Unsupported Devices |
| AKAI LPK25 keyboard |
Behringer UMA25S |
| AKAI LPD8 |
Novation Launch control |
| Akai MPK Mini mkII |
Alesis V49 |
| Akai MPC 1000 |
Teenage Engineering OP-1 |
| Arturia Beatstep |
|
| Arturia MiniLab Mk1 |
|
| Arturia Minilab MKII |
|
| Behringer X32 |
|
| Behringer XR18 |
|
| Casio CDP-220R |
|
| Casio CGP700 |
|
| Casio Privia PX-S3000 |
|
| Farfisa FX-1000 |
|
| KAWAI MP6 |
|
| KORG ARP Oddisey |
|
| KORG nanoPAD2 |
|
| KORG Microstation |
|
| KORG SQ-1 |
|
| M-Audio Axiom |
|
| M-Audio X-Session |
|
| Novation LaunchKey 49 MK2 |
|
| Novation SL Mark II |
|
| Numark Orbit |
|
| Yamaha NP12 |
|
| Yamaha P105 |
|
| Yamaha THR5/THR10 |
|
| Zoom MS-70 CDR |
|
