Beige 3.5" panel Black 3.5" panel
Beige 3.5" panel Black 3.5" panel

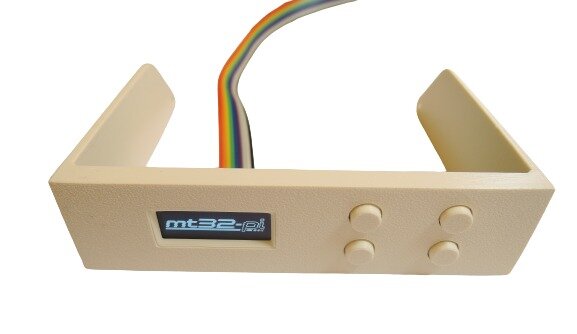

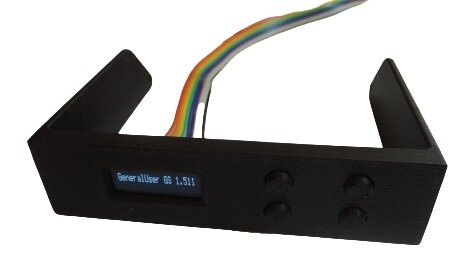

WP32/MT32Pi Drive Bay Panel 3.5" with OLED display + buttons
High quality 3d printed panel for 3.5" drive bay, with OLED display + buttons. Compatible with WP32 McCake, MP32L, and other MT32Pi projects
€ 30,00
Price per unit

Stock :

Quantity:
Order

WP32 Drive Bay Panel 3.5" with OLED display + buttons
- Choice between 'computer beige' and 'black' colour
- Includes 60cm 9 pin connection cable
- Pinout (see also MT32PI control surface information)
  • Pin 1: SDA  (OLED display)
  • Pin 2: SCL  (OLED display)
  • Pin 3: 3.3V  (OLED display)
  • Pin 4: GND
  • Pin 5: Button 1
  • Pin 6: Button 2
  • Pin 7: Button 3 / Encoder counterclockwise
  • Pin 8: Button 4 / Encoder clockwise
  • Pin 9: Button 5 / Encoder button







All prices include VAT
