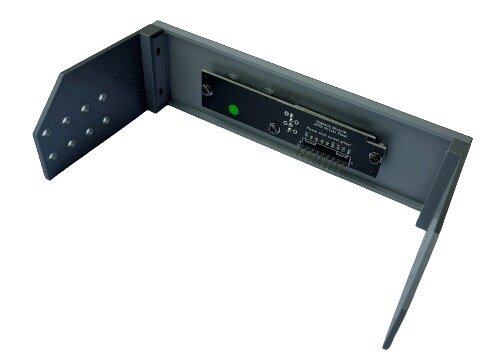

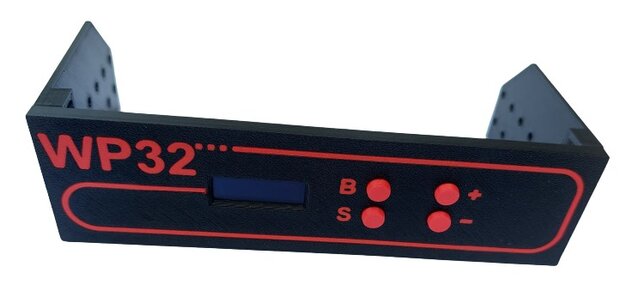

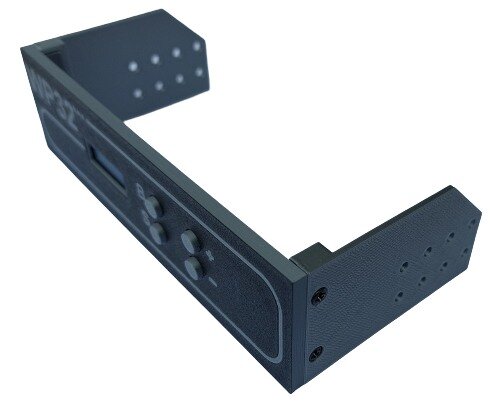

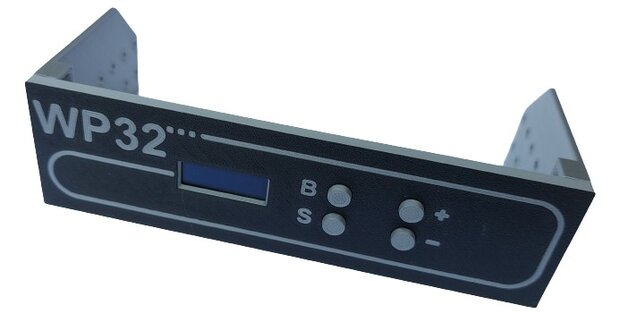

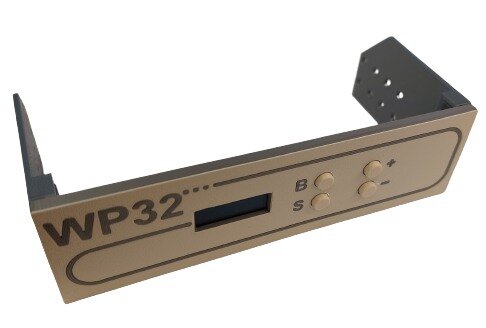

WP32/MT32Pi Drive Bay Panel 5.25" with OLED display + buttons
High quality 3d printed panel for 5.25" drive bay, with OLED display + buttons. Compatible with WP32 McCake, MP32L, and other MT32Pi projects
€ 45,00
Price per unit

Stock :

Quantity:
Order

Drive Bay Panel 5.25" with OLED display + buttons, high quality multicolour 3d print
- Choice between different colour schemes :
  • Computer Beige + Silver text/logo
  • Black + Silver text/logo
  • Black + Red text/logo
- Includes 60cm 9 pin connection cable
- Pinout (see also MT32PI control surface information)
  • Pin 1: SDA  (OLED display)
  • Pin 2: SCL  (OLED display)
  • Pin 3: 3.3V  (OLED display)
  • Pin 4: GND
  • Pin 5: Button 1
  • Pin 6: Button 2
  • Pin 7: Button 3 / Encoder counterclockwise
  • Pin 8: Button 4 / Encoder clockwise
  • Pin 9: Button 5 / Encoder button





All prices include VAT
