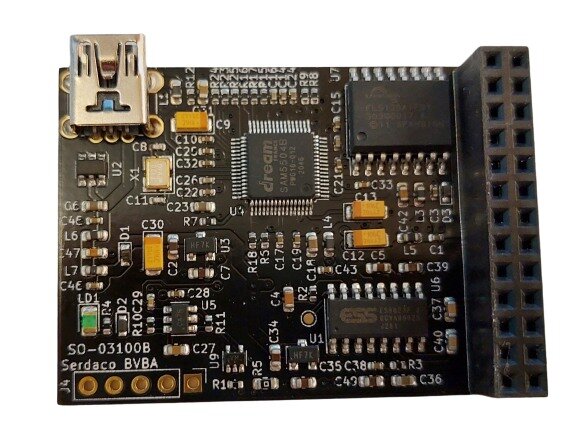

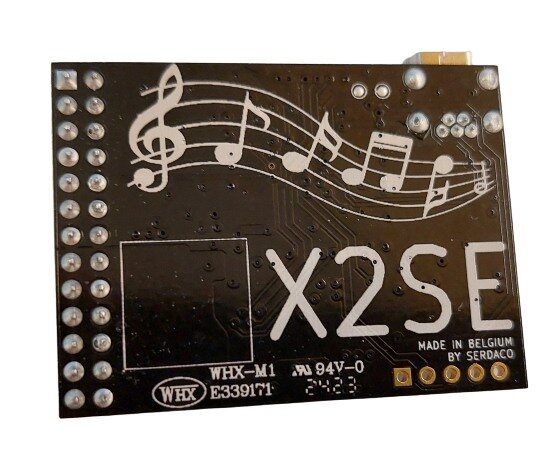

X2SE Top X2SE Bottom
X2SE Top X2SE Bottom
X2 Second Edition, an avanced Waveblaster Compatible and USB Compatible MIDI Synthesizer board. Successor the the X2 waveblaster board.

Default delivery time

in stock

€ 85,00
Price per unit

Stock :

X2 SE Advanced WaveBlaster + USB Synth, is the successor to the DreamBlaster X2 waveblaster board.
It is suitable for DOS gaming, als wel as integration in music products. It is 100% compatible with DreamBlaster X2.

If you want to use X2 SE for gaming only, please have a look at the new X2GS SE you might want to consider
this one instead as it has a special licensed soundbank.

Have a look at the user manual

- Small formfactor midi PCB : 47mm x 37mm size
- Black color PCB
- Dream 5000 series synth chip with 81 voices polyphony, high quality effects engine
- Waveblaster compatible connector for use on soundcards (such as Soundblaster 16, Audician 32, ESS AudioDrive, Aureal Vortex 2 and many others...) and DIY projects.
- It will also work on instruments that accept waveblaster cards, such as Oberheim MC2000, Korg NS5R and Terratex Axon AX 100
- Super low latency <1ms
- 64mbyte flash for soundbank data
- USB MIDI in (Class compliant midi device, works on windows XP and higher, without drivers)
- high quality 24 bit stereo DAC
- Preloaded with a high quality 16 megabyte Dream General MIDI soundbank or the High end 50 myte Buran bank.
- Advanced MIDI commands spec available.
- DreamBlaster preset editor / USB uploader tool for advanced customization/tweaking.

Downloads available at http://serdaco.com/downloads/X2/
More unofficial soundbanks available here : https://www.vogons.org/viewtopic.php?f=62&t=65873
Find information here and here  how to convert your own soundbanks using Awave Studio.

Sound Demo's here on soundcloud : http://soundcloud.com/dreamblaster

Please note: There are some older soundcards with a Waveblaster compatible header but don‘t have an MPU401 interface. Instead there is only the SoundBlaster MIDI standard supported so the games that run with the X2 SE module are limited. Also you need SoftMPU to emulate the MPU401 interface in this case. Visit http://bjt42.github.io/softmpu/ for further information and a list of compatible games.

Below you can find some videos of X2, which is 100% compatible with X2 SE :

Some MIDI game tracks played on the X2 :

Review by Phil's Computerlab :


Use X2 with the excellent free MIDI player from Falcosoft !

And here you can see how Salvo installed his X2 into his Oberheim MC2000

Demo of different soundbanks :

Here's a video by Retro Erik on X2 :

Demo by PC Sound Legacy

Example project using X2 as sound engine : Harmonium Expresseurisé + video
