CHiLL and Phil Adapter

MPU-401 MIDI port adapter for DreamBlaster S1,X1, S2 or X2

Default delivery time

: built on demand (few days)

€ 20,00

Price per unit

Stock :

Legacy waveblaster support:

Quantity:

Order

Description

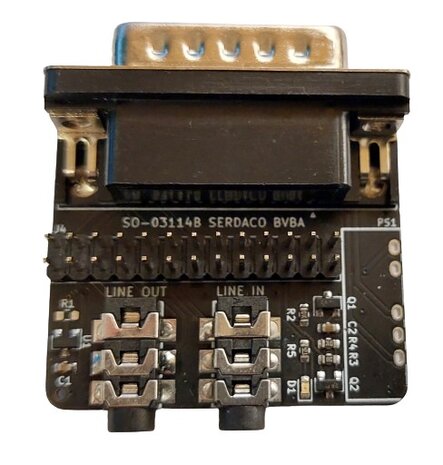

Adapter which allows plugging your DreamBlasterX2,S2,.. modules to the MIDI/Gameport of your soundcard.
New edition, with MIDI activity LED

Works on any soundcard that has the MPU401 MIDI interface and a gameport.
Tested on SoundBlaster Live.

Connectors :
- 15 pins male gameport connector : plugs on the MPU401/MIDI gameport
- Waveblaster header for S2, E-Wave and X2GS modules. (5V only).
- 3.5mm stereo line out
- 3.5mm stereo line in (for X4 only)

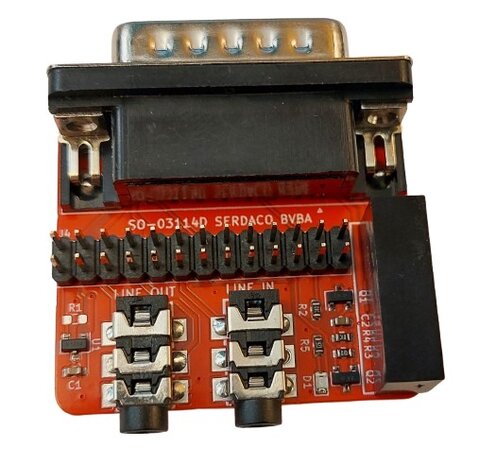

- optional +12V/-12V DC/DC module for classic waveblaster support (for example yucatan, XR385,.. ) --> red pcb version

Review :

Demo:

Chill 'n Phil legacy support version, hosting XR385:
