Adapter which allows plugging your DreamBlaster X1,
X2,X4, S1,
S2 modules to the MIDI/Gameport of your soundcard.
CHiLL and
Phil IV : new limited edition.

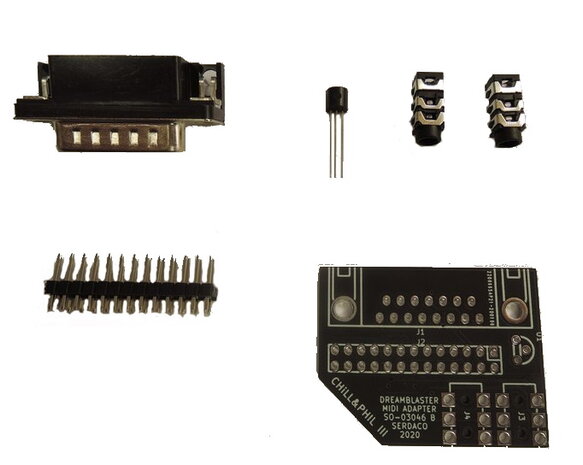

Now available as easy solder kit and presoldered board. Please download the
solder instructions here.
Tested on SoundBlaster Live.
Works on any soundcard that has the MPU401 MIDI interface and a gameport.
Connectors :
- 15 pins male gameport connector : plugs on the MPU401/MIDI gameport

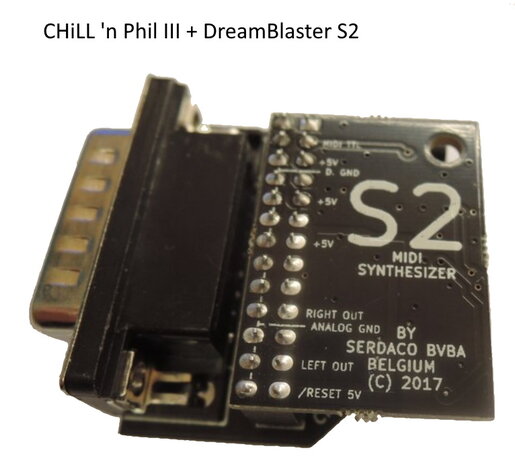

- Waveblaster header for X1, X2, X4, S1 or S2 modules. (Other older wavetable boards will not work due to the lack of 12V supply on the gameport)
- 3.5mm stereo line out
- 3.5mm stereo line in (for X4 only)
- optional +12V/-12V DC/DC module for classic waveblaster support (for example yucatan)
