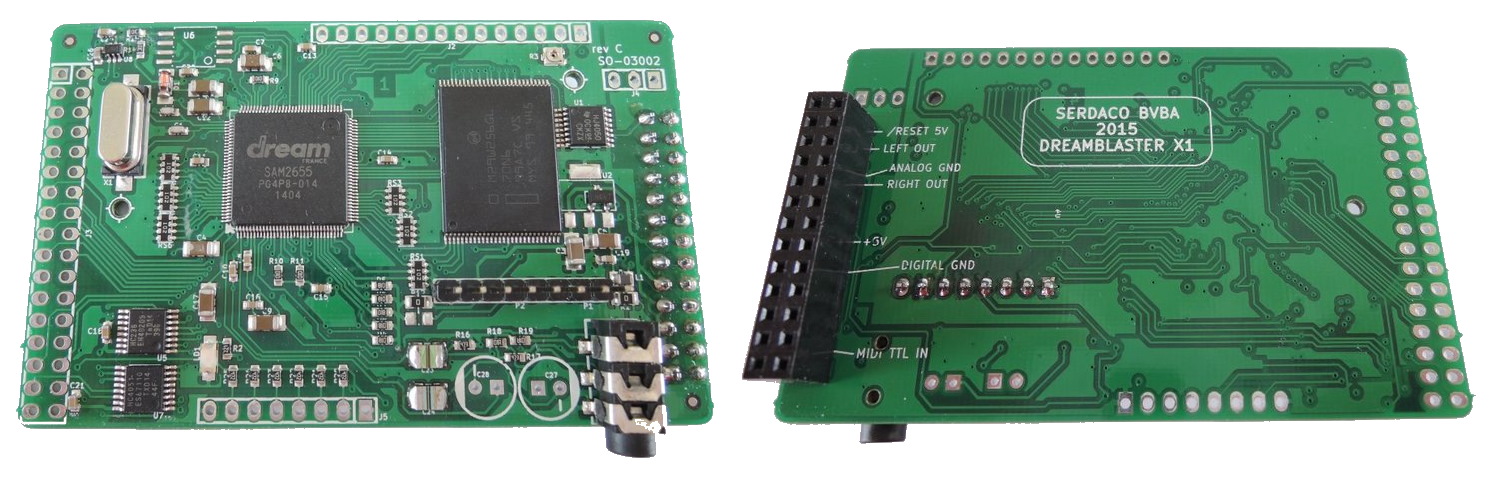

DreamBlaster X1 (2015 - 2016)



X1 is sold out. Have a look at the successor Next Generation Synthesizer PCB : DreamBlaster X2

X1 specs :
Waveblaster compatible synthesizer daughterboard using .
  • 64-voice polyphony (without effects)
  • 38-voice polyphony + effects
  • 32 mbyte flash
  • High quality 4 layer PCB, dimensions : 78mm x 49mm
  • preprogrammed with 8 mbyte CleanWave GM soundset
  • Can be used on Waveblaster Compatible soundcards such as SoundBlaster 16, AWE32 (some models), ...
  • Can be used in Oberheim MC2000
  • Can be used for electronics projects, such as arduino, raspberry pi, midibox,...
  • Can be used as standalone midi module when combined with this interface board
  • Dimensions : 50mmx80mm

Check out this nice X1 Review\Tutorial by Phil's computerlab !
And check this comparison with Roland and Yamaha modules  !

Other Youtube MIDI Demo's for X1 and S1

Jumper settings :
1 : 0= Normal Boot 1 = BootLoader (Requires Reboot)
2:  0 = dry (room), 1 =  wet(hall)
4, 3 : Omni mode : 00=All, 01=ch1, 10=ch10, 11=ch2
7, 6, 5 = Soundbank mode (automatic reboot) :
      000= A+B
      001= A : General MIDI Bank (8mb)
      010= B : Traditional Piano (8mb)
      011= B+A
      100= C : Chip tune bank
      110= B+C
      111= D : Reserved
8:  Default Volume : 0=normal, 1= loud
