DreamBlaster S1 (2014 - 2017)

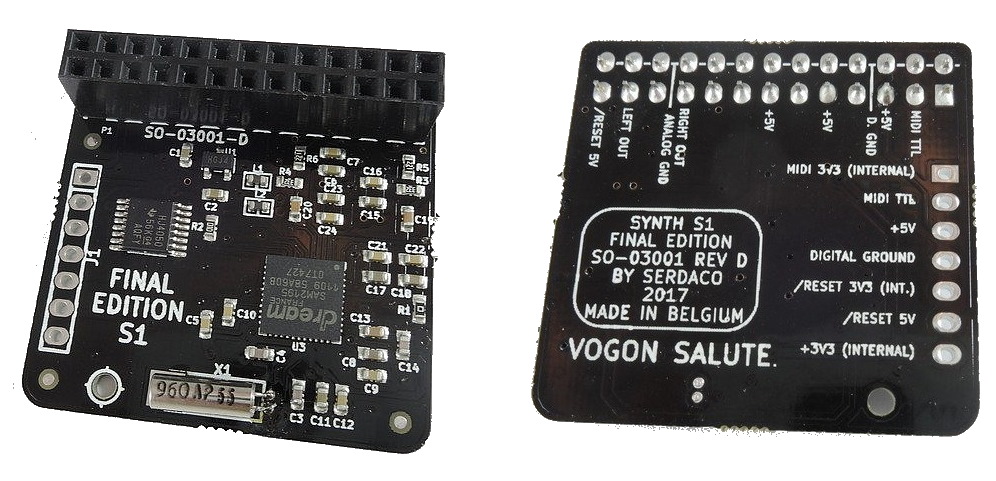

S1 'Black Final Edition'. Limited Edition 2017.  COMPLETELY SOLD OUT !!

A successor PCB DreamBlaster S2, is available now

Also you can have a look at S1's big brother synth PCB X2 .

S1 'Black Final Edition'. Limited Edition 2017 specs :

Waveblaster compatible synth module based on the SAM2195 chip.

  • 64-voice polyphony (without effects)
  • 38-voice polyphony + effects
  • High quality, compact size
  • CleanWave soundset
  • General MIDI compatible effects
  • 4-band stereo equalizer
  • Low power consumption, only 5V supply required (no +/- 12V)
  • Low noise audio output
  • Can be used on Waveblaster Compatible soundcards
  • Can be used for electronics projects, such as arduino, raspberry pi, midibox,..
  • Small size, ideal for building into projects : 36mm x 35mm
  • SAM2195 MIDI specifications and chip datasheet : click here.
This board is intended for testing, education, development, and usage in custom projects and prototypes.

Compatible with any soundcard that has a Waveblaster connector, SoundBlaster 16, Audician 32, ESS AudioDrive, Aureal Vortex 2 and many others.

Can be used in Oberheim MC2000

Follow these simple instructions to convert your Dreamblaster S1 into a good looking standalone MIDI module. (using S1 module + S1 interface PCB + enclosure kit).

Also suitable for use in electronics projects and retro gaming pc's.

S1 Video review with sound demos by Philscomputerlab on youtube

Youtube MIDI Demo's for X1 and S1

See/hear DreamBlaster S1 in action here in Monkey Island 2
